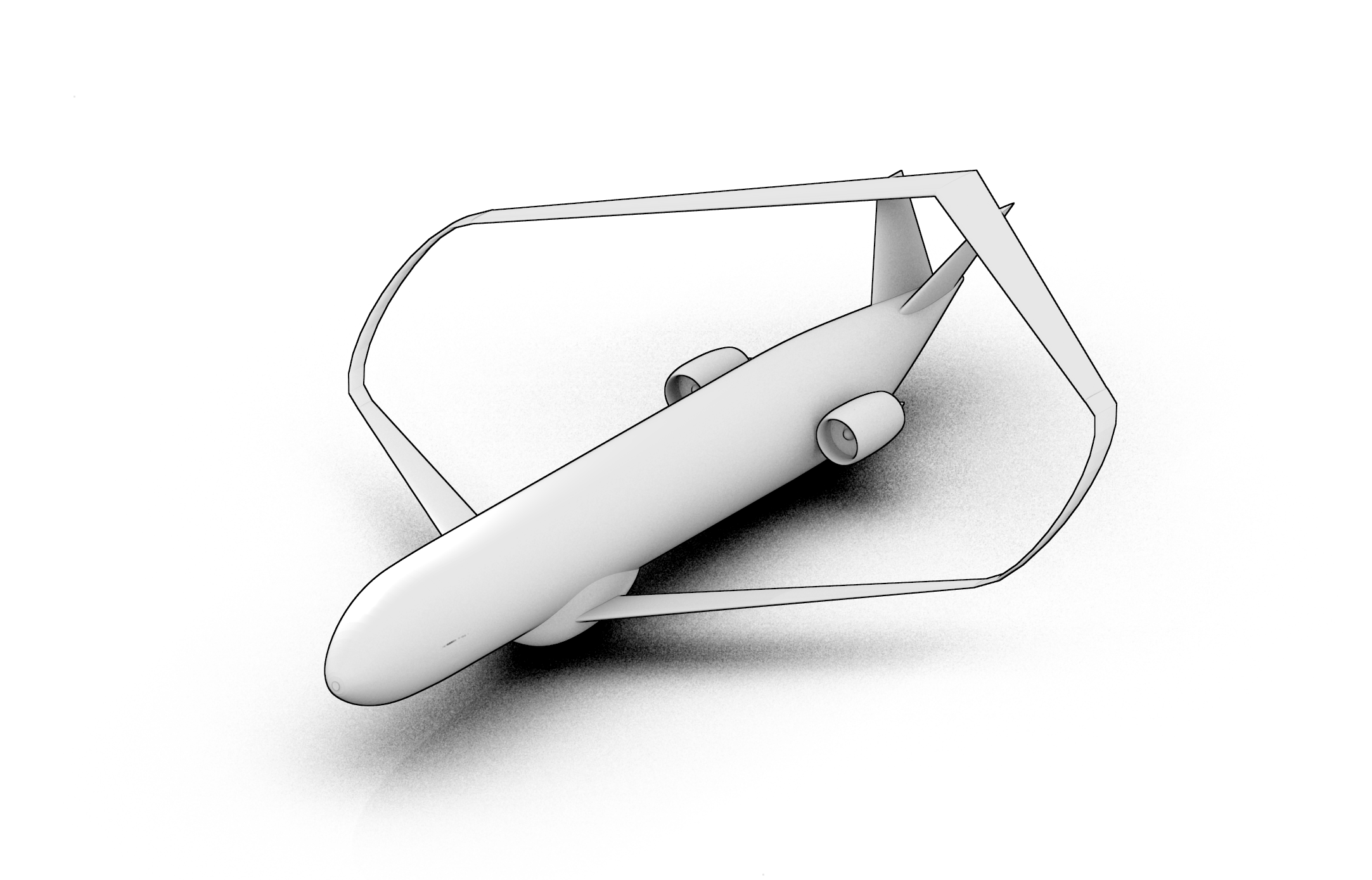

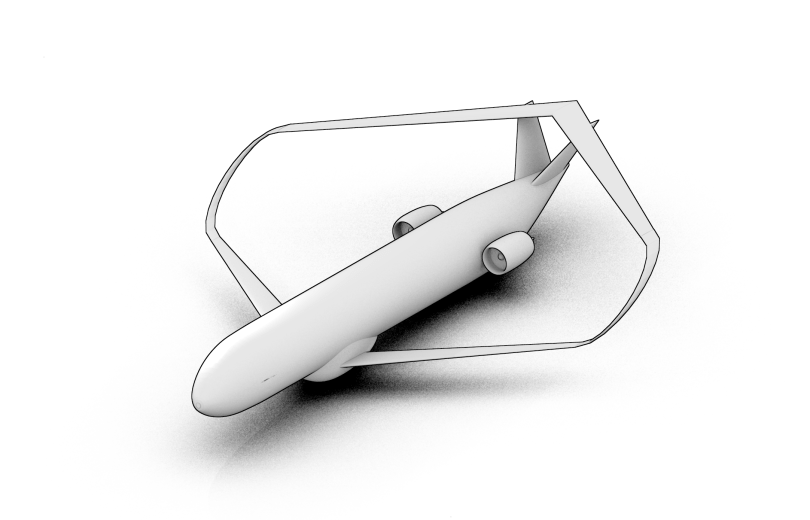

Use Case – Box-Wing

Top Level Aircraft Requirements
PAX [-]	150
Wing span limit [m]	36
Range @max Payload [km]	3600
Mach number in cruise@ICA [-]	0.78
Approch speed (@MLW, SL, ISA) [kts]	138
Take-off field length [m]	2200

Downloads

	Baseline Best Level 1/2 Best Level 2 Aileron CPACS files can be visualized using TiGLViewer
	Baseline mesh (STP)
	Flight gear model

Participants
Architect
Integrator
Specialists

Interactive visualization

XDSM Schema

Loading...

Taking too long?

Reload document

| Open in new tab

You can download the CMDOWS file of this XDMS Schema and open it with the MDO System Interface to see it in details.

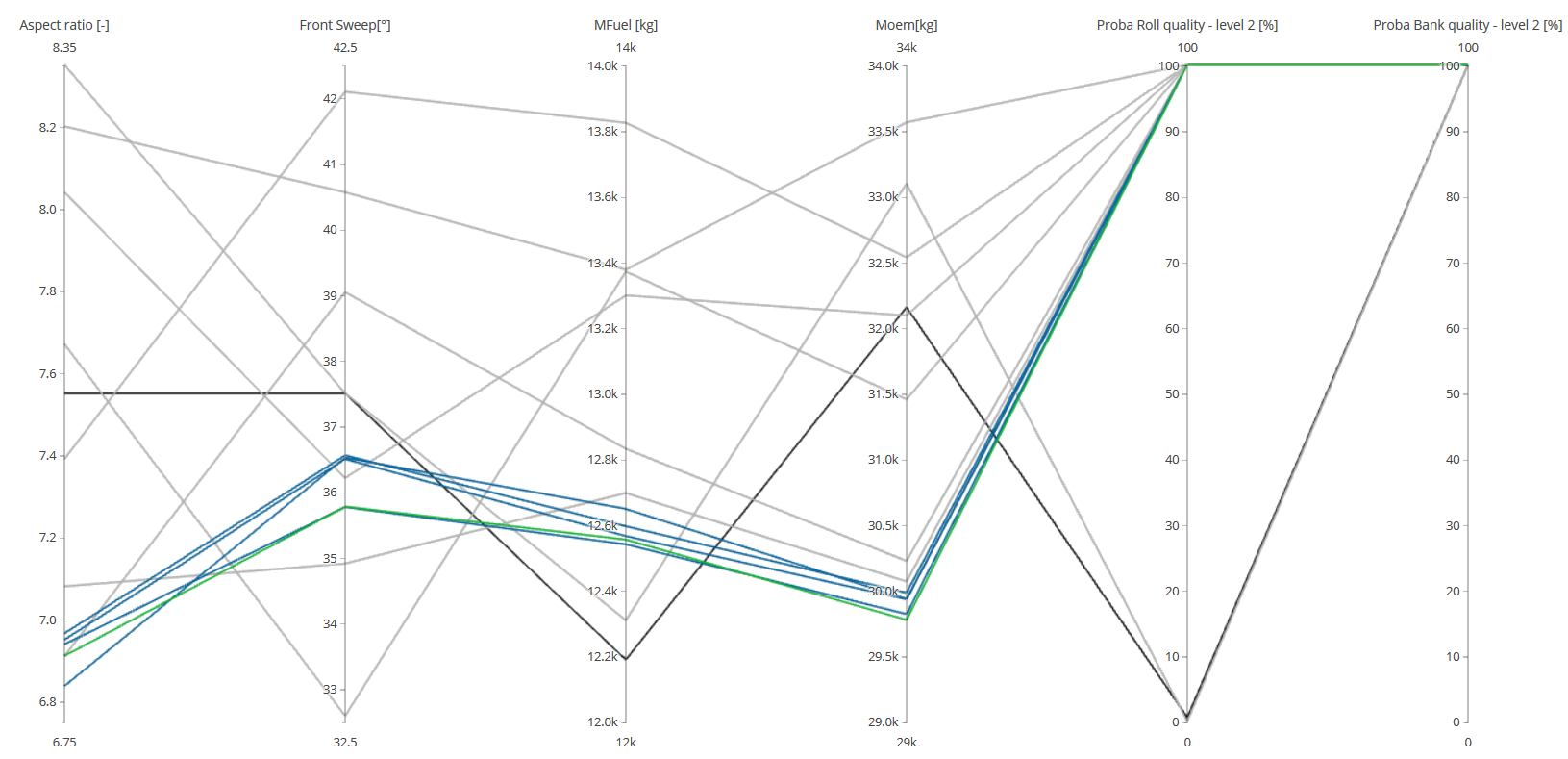

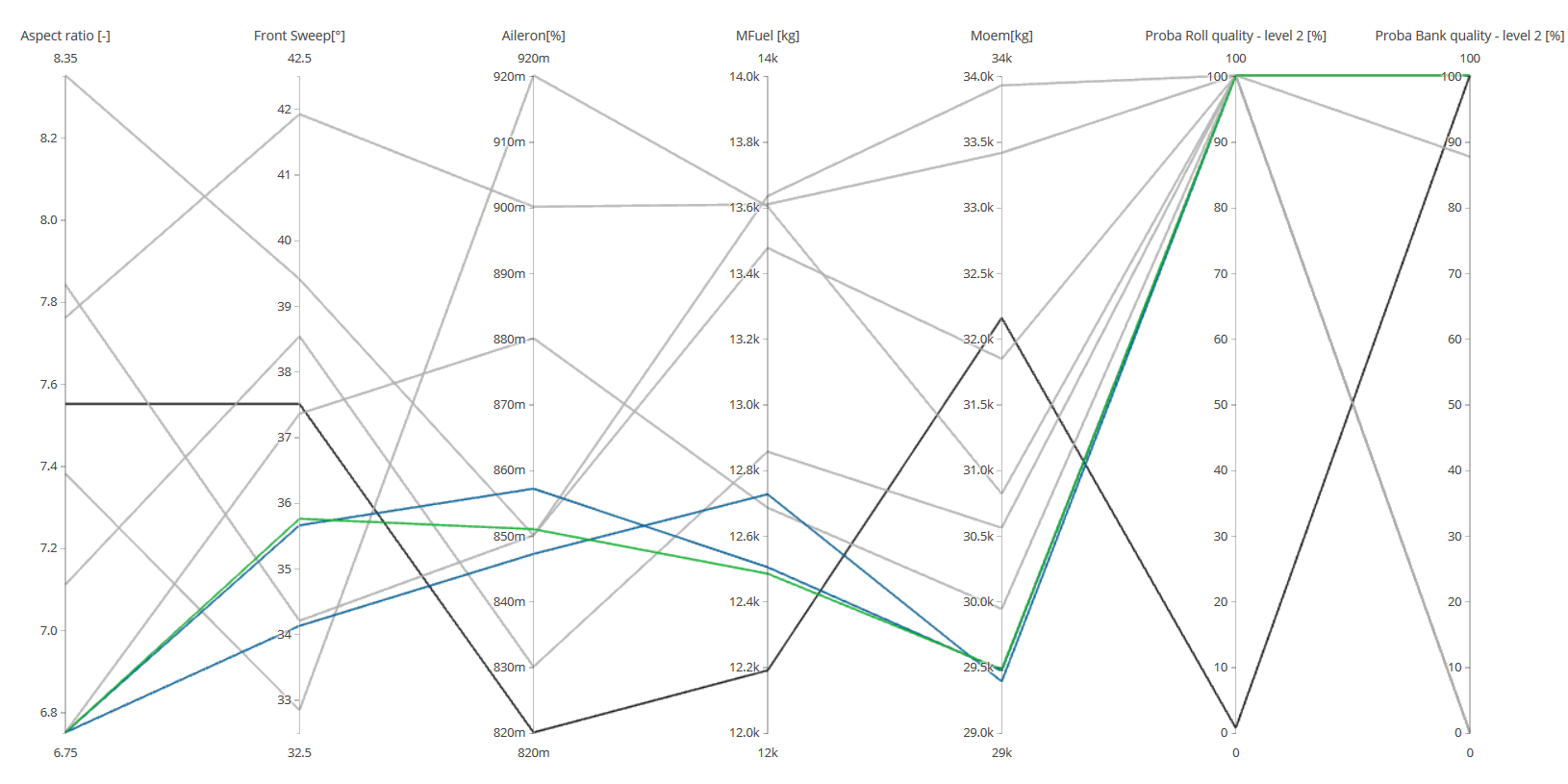

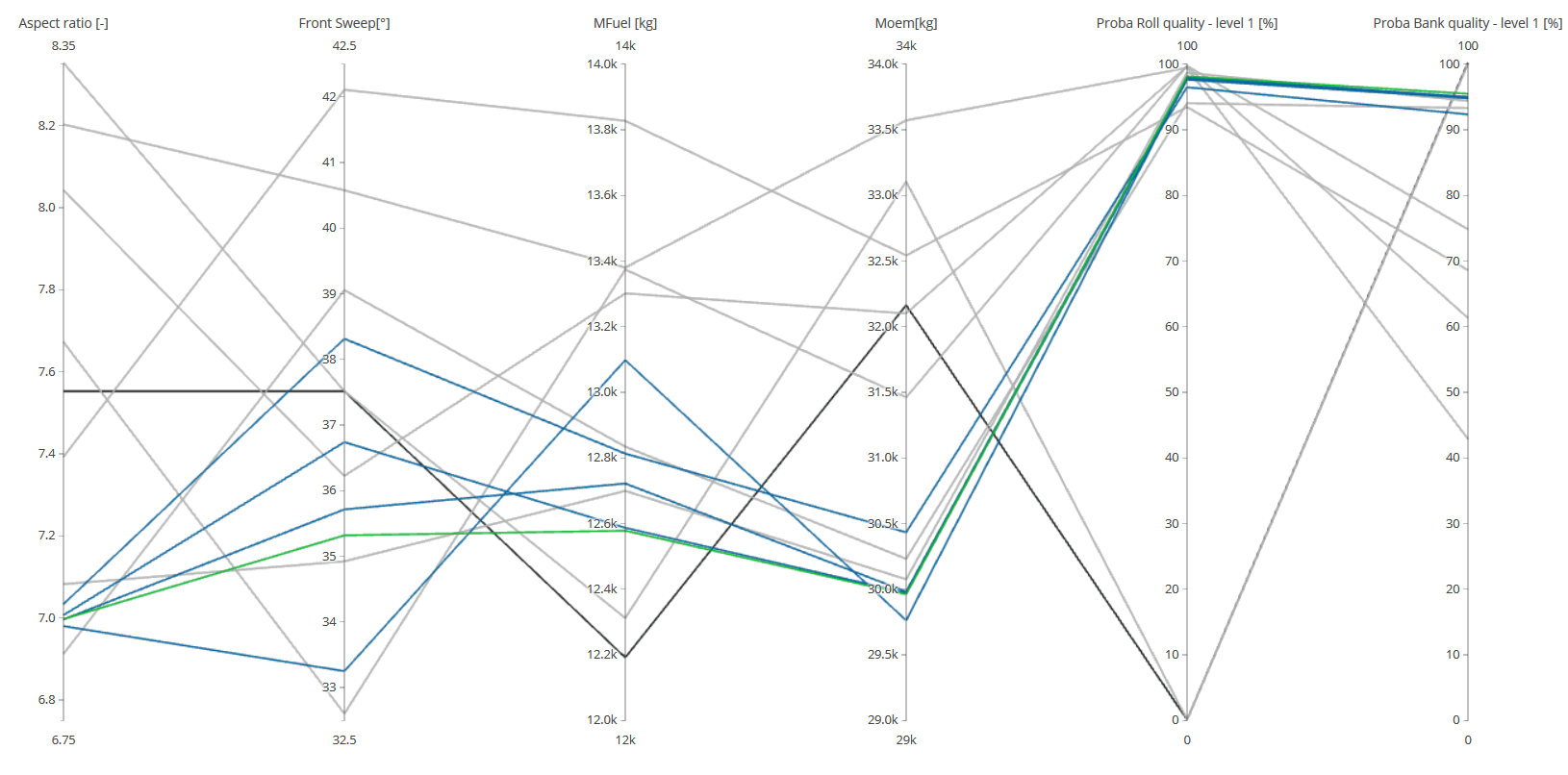

Results
